Description

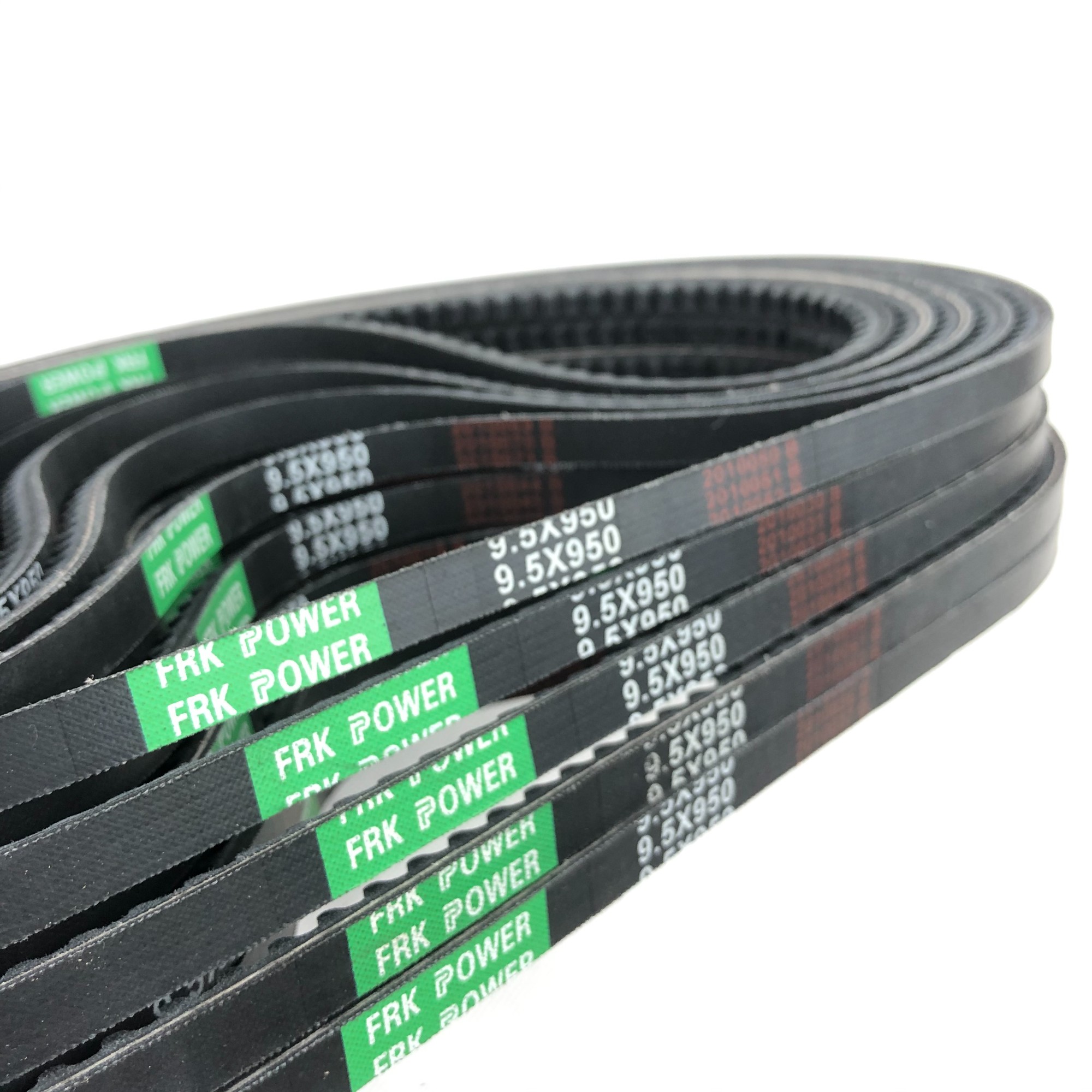

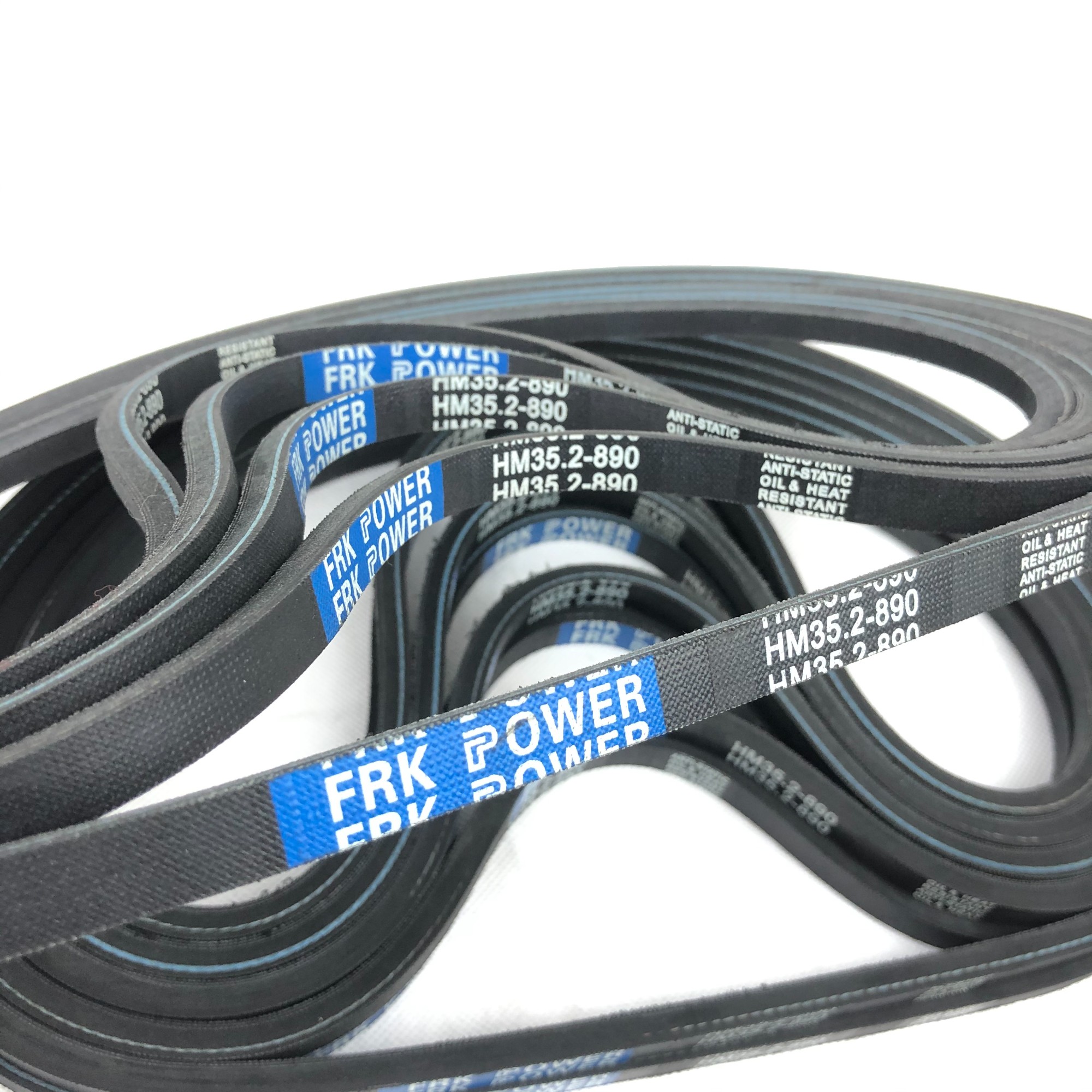

FRK POWER's V-belt:
Structure
|
Name |
Function |
Material |
|
Top Fabric |
Protect the tensile member |
Polyester Cotton Canvas |
|
Core Cord |
Nuclear material to pass the dynamic force |
Polyester |
|
Bottom Rubber |
Side compression resistant and section |
CR,EPDM |
|
Bottom Fabric |
Absorb the impact and prevent crack of the core rubber |
Elastic Fabric |
Feature
Large intensity,high flexibility,good durability
Special Bottom rubber used,small elongation and long service life
Excellent heat-resistance,oil-proof,and wearing resistance
High transmission efficiency
Suitable for band pulley with minor diameter
Safe performance can be guaranteed even during high-speed operation
Size of Section
Section Size of industrial Raw Edge V Belts
|
Type |
Top width |
Belt Thickness |
Angle |
|
XPZ |
9.7 |
8.0 |
40 |
|
XPA |
12.7 |
10 |
40 |
|
XPB |
16.3 |
13 |
40 |
|
XPC |
22 |
18 |
40 |
|
3VX |
9.5 |
8 |
40 |
|
5VX |
16 |
13.5 |
40 |
|
8VX |
25.4 |
23 |
40 |
