Description

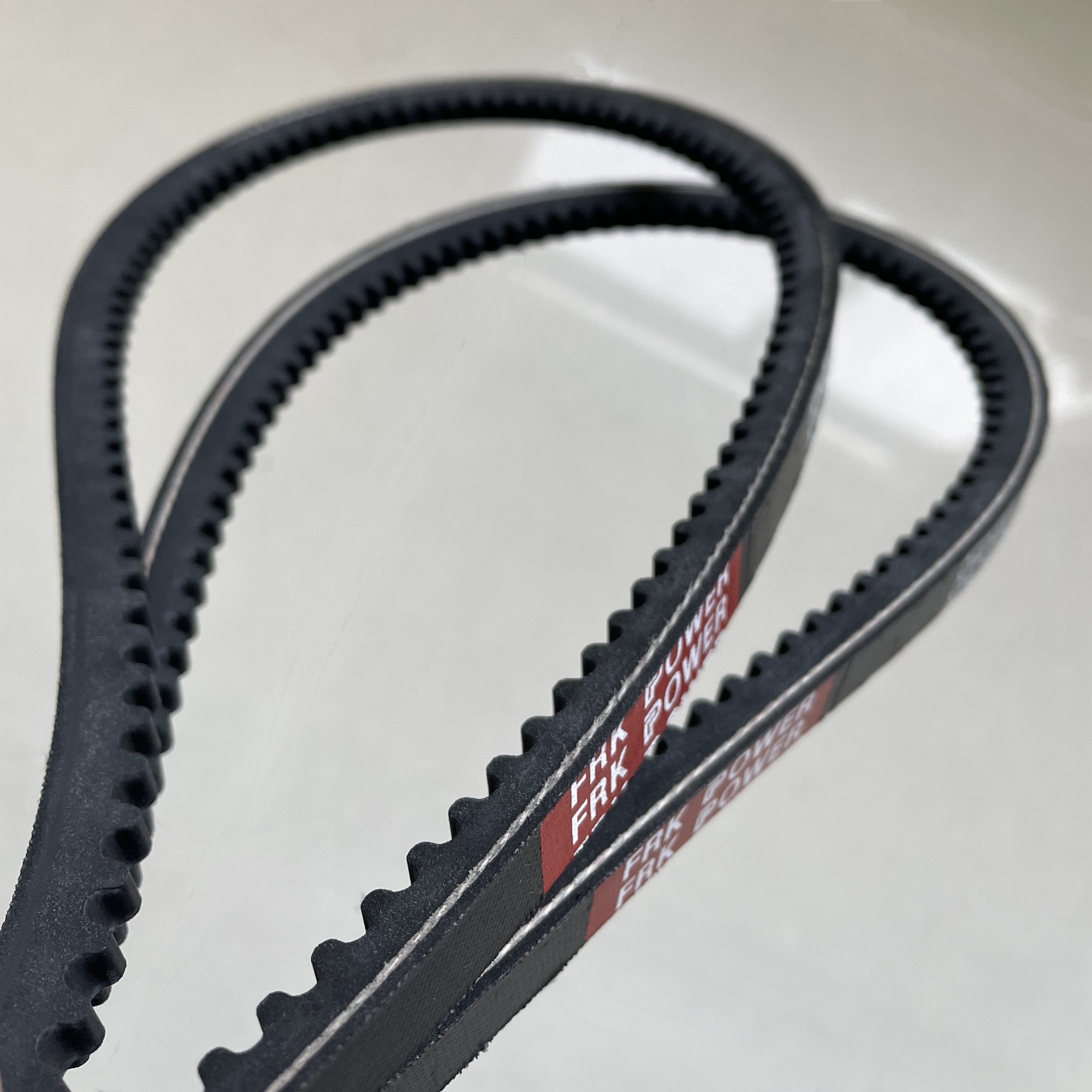

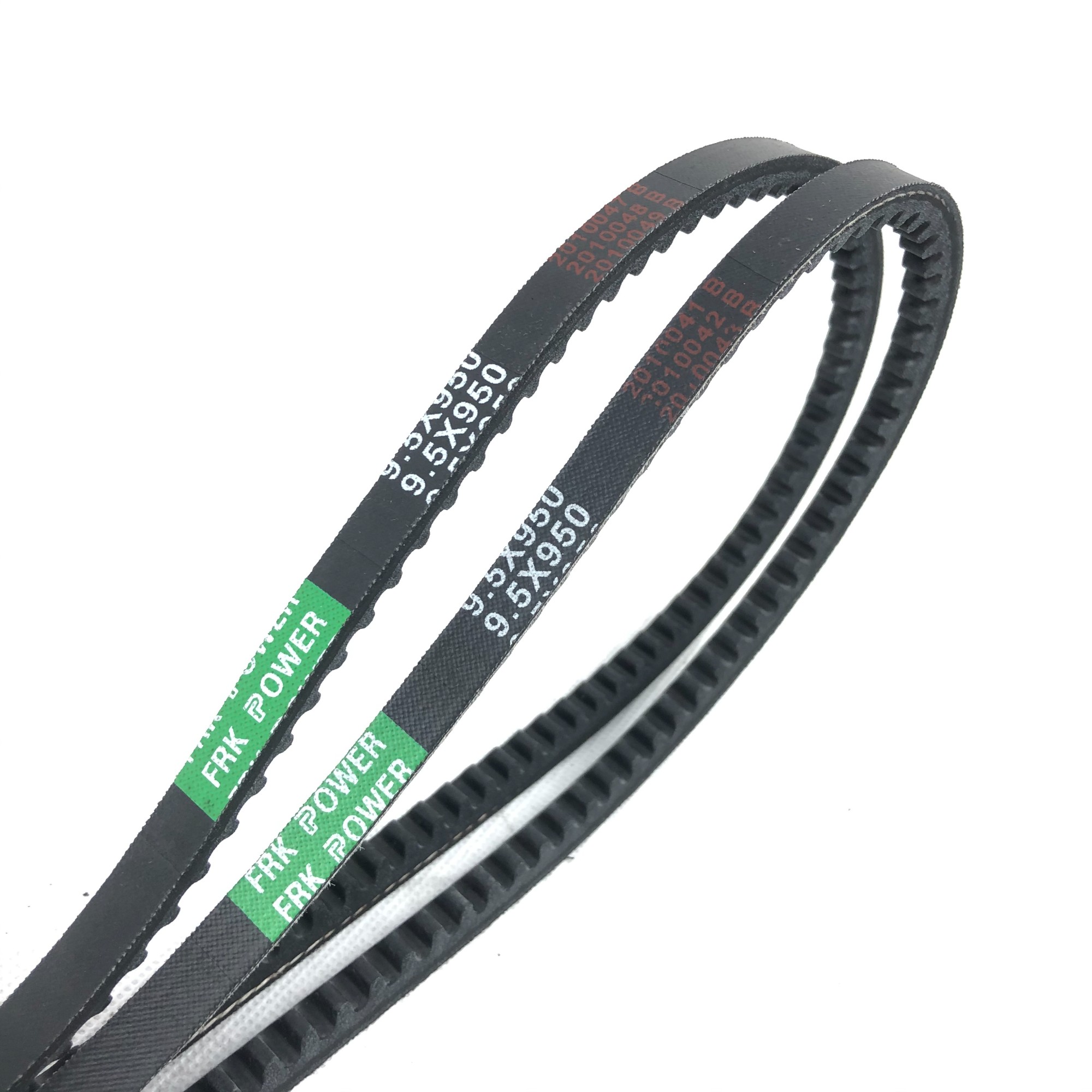

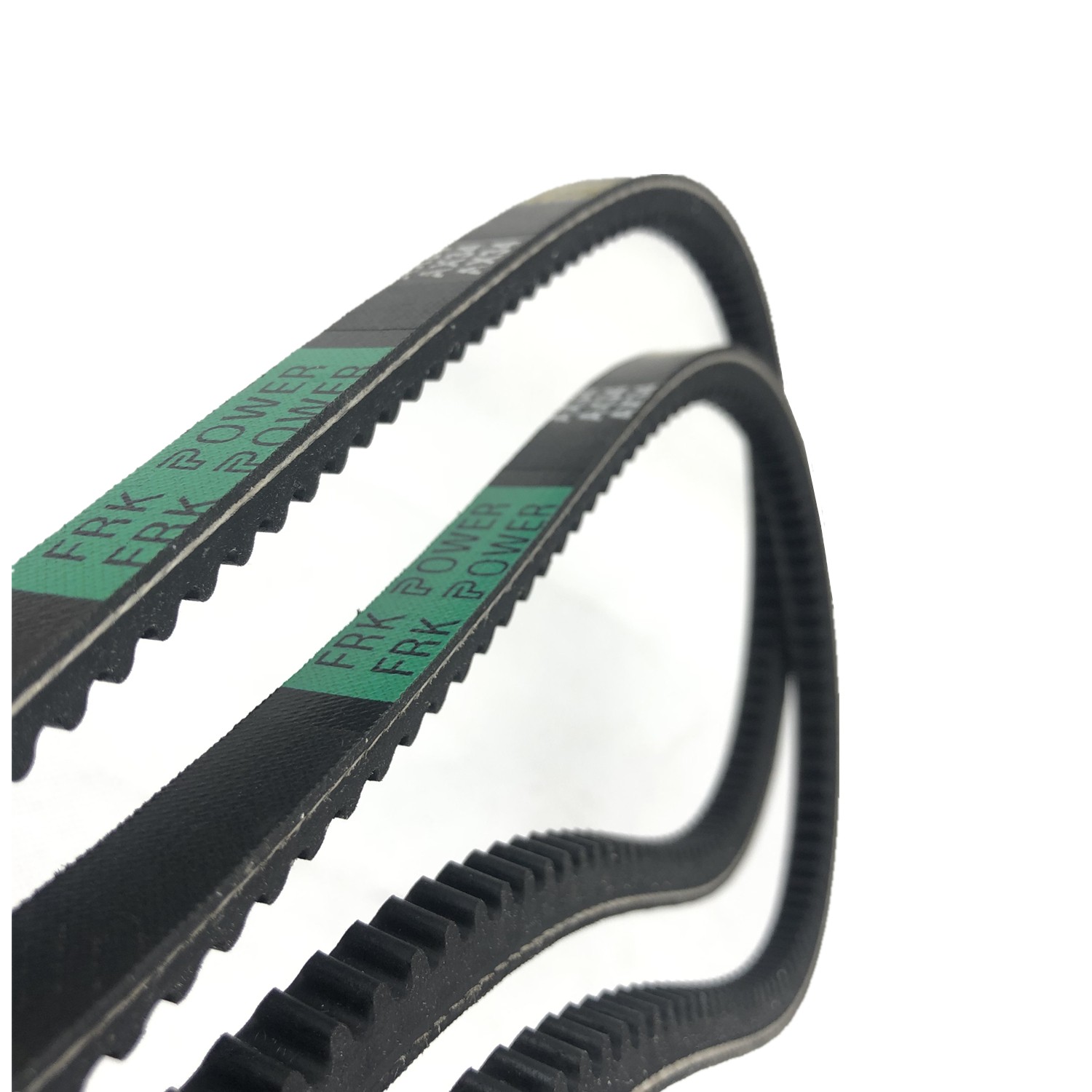

FRK POWER's V-belt:
Structure
|
Name |
Function |
Material |
|
Top Fabric |
Protect the tensile member |
Polyester Cotton Canvas |
|
Core Cord |
Nuclear material to pass the dynamic force |
Polyester |
|
Bottom Rubber |
Side compression resistant and section |
CR,EPDM |
|
Bottom Fabric |
Absorb the impact and prevent crack of the core rubber |
Elastic Fabric |
Feature
Large intensity,high flexibility,good durability
Special Bottom rubber used,small elongation and long service life
Excellent heat-resistance,oil-proof,and wearing resistance
High transmission efficiency
Suitable for band pulley with minor diameter
Safe performance can be guaranteed even during high-speed operation
Size of Section
Section Size of industrial Raw Edge V Belts
|
Type |
Top width （mm） |
Belt Thickness （mm） |
Angle（°） |
|
HM |
10.5 |
8.0 |
38 |
|
AX |
13 |
8.0 |
38 |
|
BX |
17 |
11 |
38 |
|
CX |
22 |
14 |
38 |
|
DX |
32 |
19 |
38 |
|
EX |
38 |
23 |
38 |
