Description

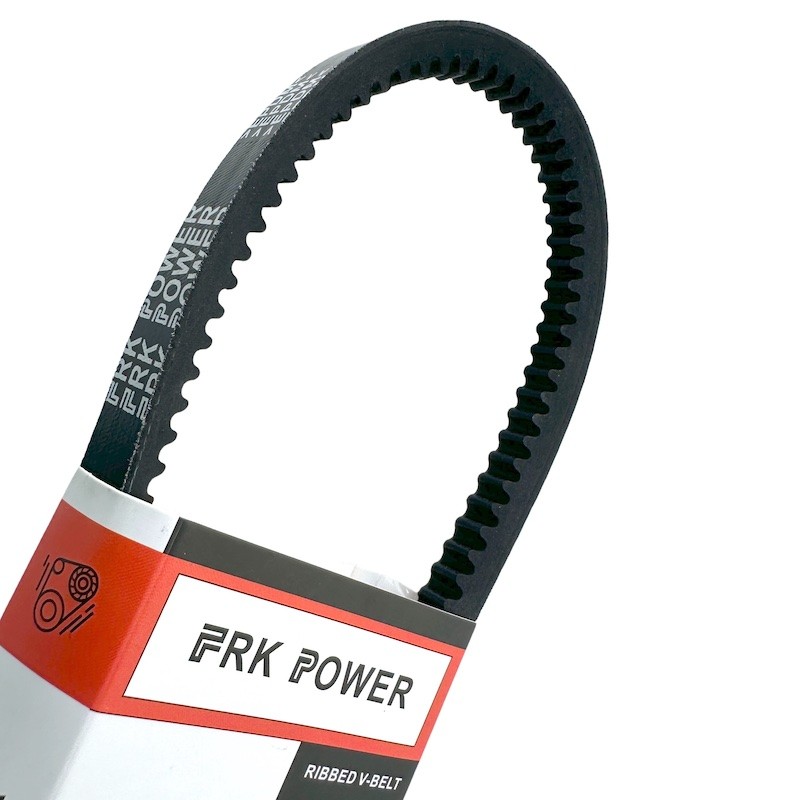

FRK POWER's automotive V-belt
The V-belt can be divided into wrapped v-belt and Raw edge v-belt by structure.
The Raw edge v-belt mainly consists of three parts: top-layer fabric, tension member and bottom-layer rubber.
Top-layer fabric: The top is composed of one or more layers of fabric, which are, following special treatment, abrasion, heat and oil resistant.
Tension member: The backbone layer is composed of polyester cords, which are sufficiently solid to resist impact and stretch, yet are easy to bend. The layer also provides heat shrinkage capacity, durability and serviceablility.
The bottom rubber layer: is composed of heat and oil-resistant CR. CR in cross section, following special treatment, contains synthetic fibers.
The wrapped v-belt is mainly composed of top rubber, tension member, bottom rubber and wrapping cloth.
Triangle belts produced by FRK POWER Company are manufactured using special material, formulation and techniques so as to provide such advantages as low noise, long life, angle accuracy, nil outstretch and dropout properties. All transmission belts meet automotive transmission industrial standard requirements.
 |
Covered with canvas along exicIrcle SPELLING OF FORMER CORRECT? (namely wrapped with strap), small extension, excellent abrasion resistance and no noise. |
 |
Rubber appears in the side face. It has very strong clamping capabilities. |
 |
Low-edge transmission belt with canvas overlapped at the bottom. It is excellent in durability and noiseless. |
 |

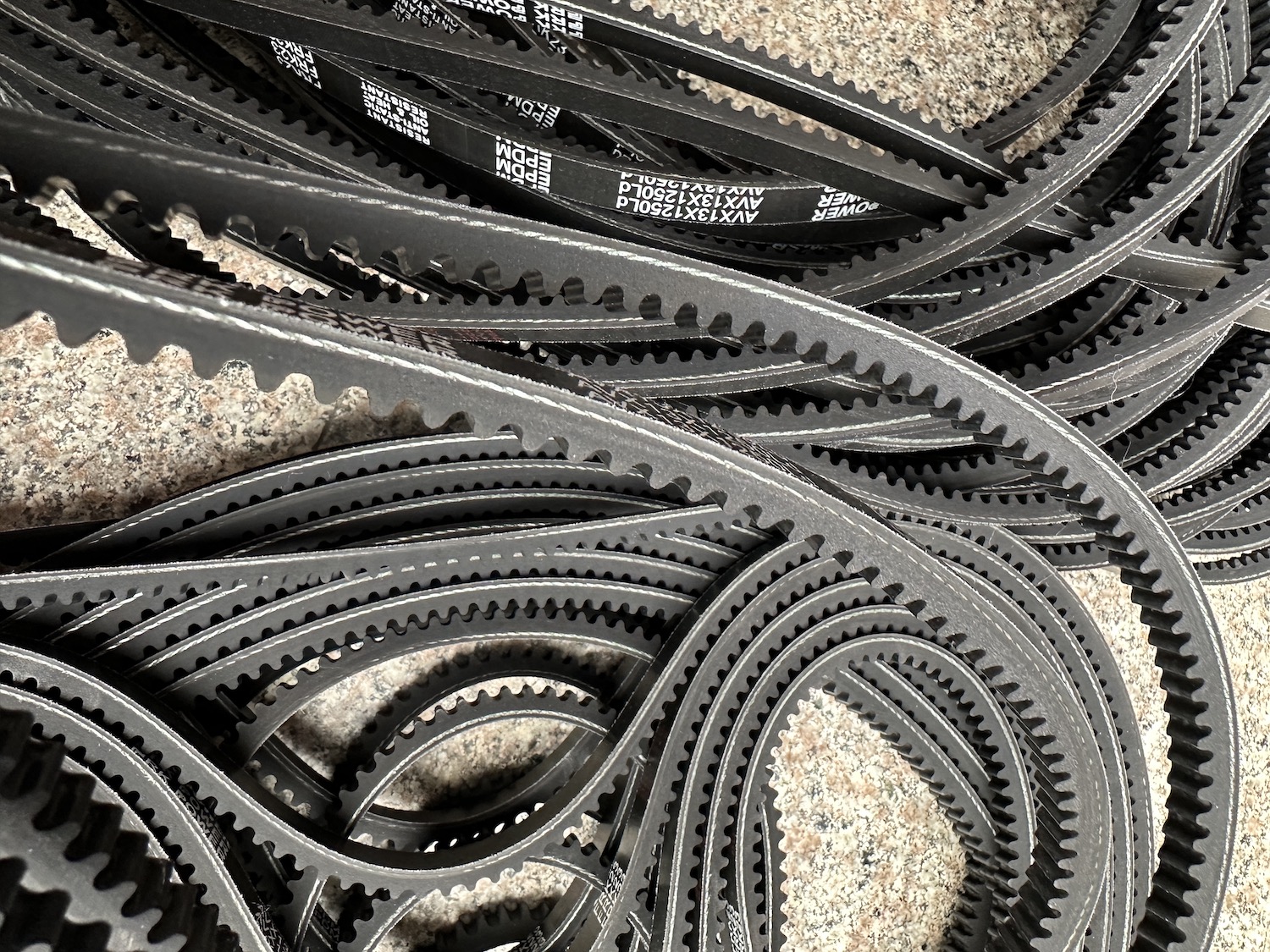

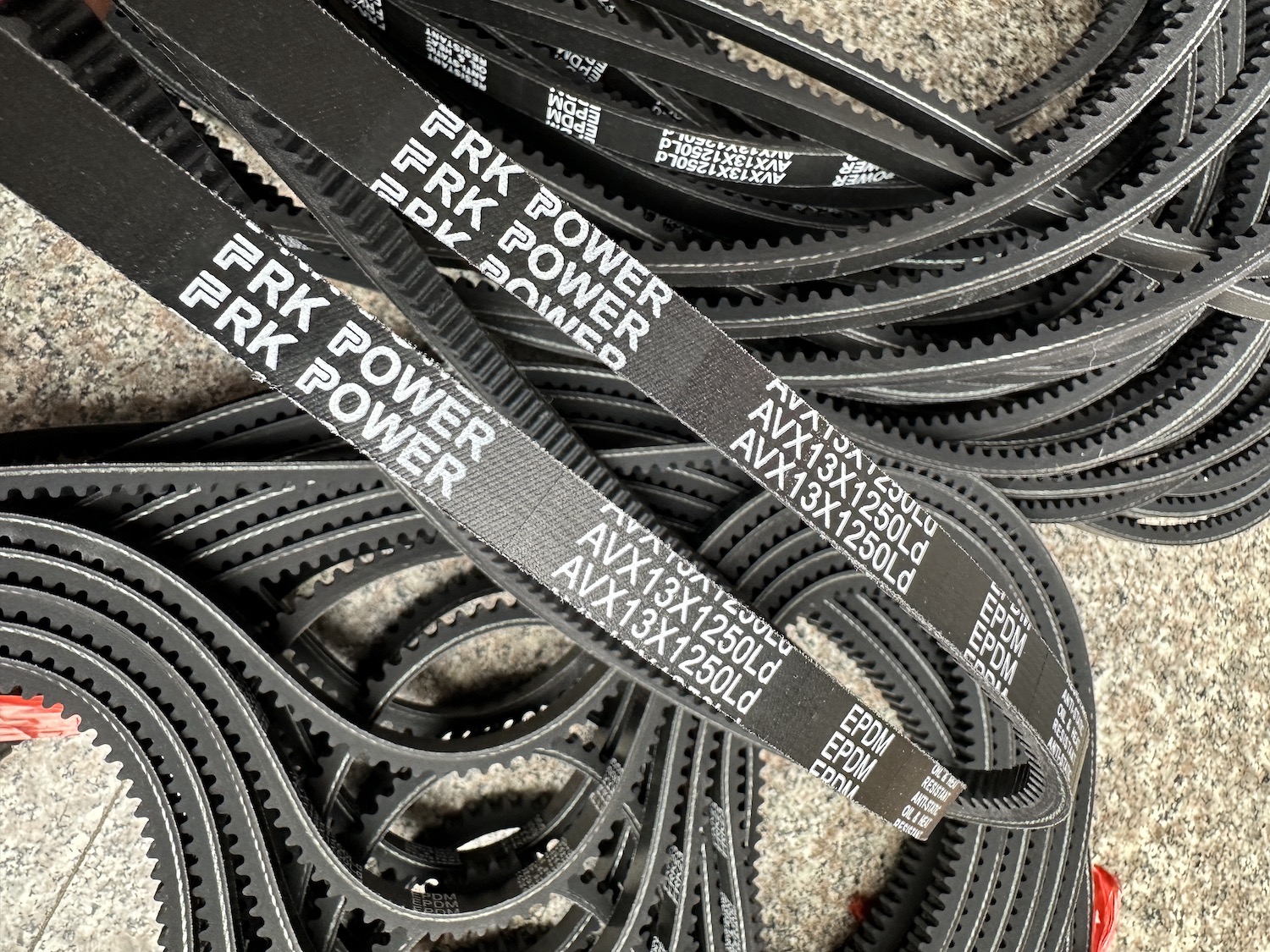

Low-edge transmission belt with teeth set on the lower face. Its flexing on small belt pulley is better than other products and its heat resistance is also excellent. |
Size
|
Type |
Top width |
Wrapped V belt |
Raw edge V belt |
REF |
REC |
Angle |
|
AV-10/9.5 |
10.0 |
8.0 |
7.5 |
7.5 |
8.0 |
40 |
|
AV-13/12.5 |
13.0 |
10.0 |
8.5 |
8.5 |
9.0 |
40 |
|
AV-15 |
15.0 |
9.0 |
- |
- |
- |
40 |
|
AV-17 |
16.5 |
10.5 |
9.5 |
9.5 |
11.0 |
40 |
|
AV-22 |
22.0 |
14.0 |
- |
- |
13.0 |
40 |
