MOTORCYCLE V BELT

V BELT

AUTOMOTIVE V BELT

FAN BELT

MOTORCYCLE BELT

Description

Advantage

1. High quality standard scooter drive belt;
2. Quality with the requirements of standard ISO9001:2008;
3. Material: Rubber CR + Kevlar Aramid fiber;
4. Oil & heat resistant, anti-aging, anti-ozone,chap-proof;
5. Each one taking force symmetrically;

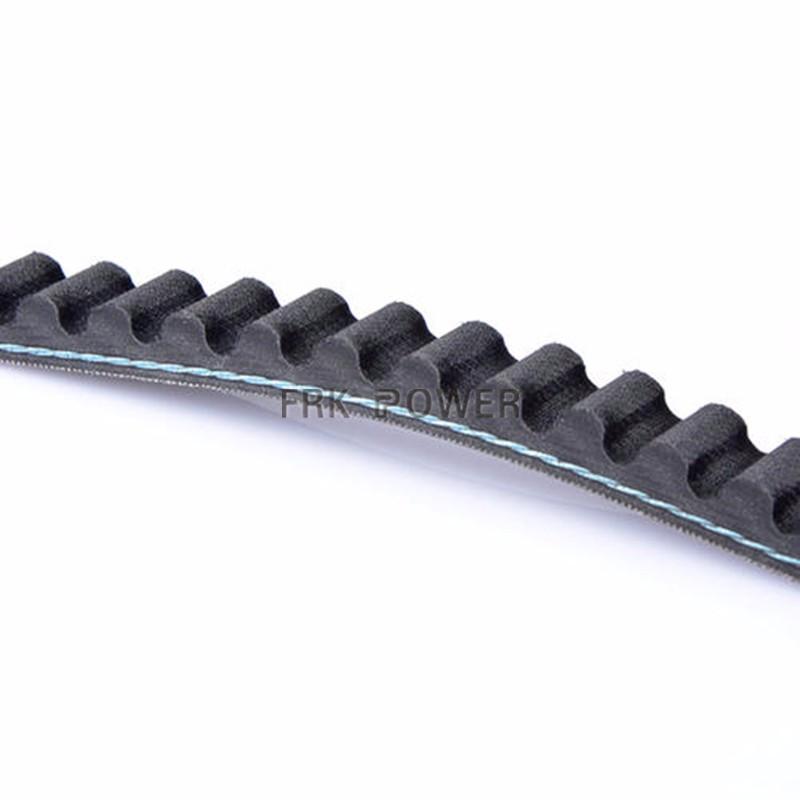

6. With tooth on both side to have a stable transmission;
7. OEM replacement belt;
8. ODM accepted.

Type	Top Width, mm	Thickness, mm	Angle
VS 17	17	8.0 +/- 0.5	30
VS 18	18	8.5 +/- 0.5	30
VS 19	19	9.0 +/- 0.5	30
VS 20	20	9.5 +/- 0.5	30
VS 22	22	10.0 +/- 0.5	30

Recommend Popular Drive Belt Sizes:

669x18x30 ( 23100-GAK-9010 )
728x18x30 ( 23100-KEB7-9000 )
743x20x30 ( 23100-GY6-901 )
816x22x30 ( 23100-KWN-901 )
828x22.5x30 ( 23100-KM1-671 )
835x20x30 ( PL20705 )
842x20x30 ( PL20708 )
906x22.5x30 ( 23100-KGG-9110 )
