Description

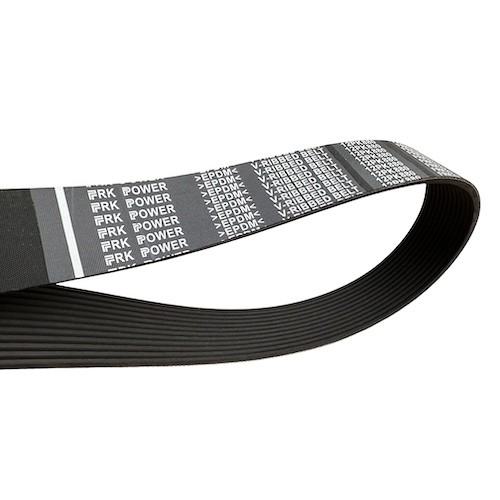

FRK POWE ® Multi Ribbed Belts are an ideal solution for compact drives in household appliances and heavy machinery.
Multi Ribbed Belts combine the high flexibility of flat Belts with a high power transmission capacity of V-Belts.
Multi Ribbed Belts enable economic solutions even under difficult drive conditions, such as large transmission ratios, high Belt speeds, small pulley diameters and back idler pulleys.
Multi Ribbed Belts consist of multiple V-grooves.
The design allows operation on small pulley diameters.
Multi Ribbed Belts offer high Belt speed. Multi Ribbed Belts are designed for high power transmission ratios and offer high power output.
FRK POWE ® Multi Ribbed Belts are available in PH, PJ, PK, PL and PM profiles, these Belts are available in the standard version, high temperature, elasticated, topcoat; for packaging machinery, FRAS; which are fire-resistant, anti-static Belts and double-sided multi ribbed belts.
Features
High power transmission capacity
Suitable for small pulley diameters
Maximum Belt linear speed up to 60 m/sec
Highly flexible, noise-free & smooth running
Suitable for speed ratios up to 1:30
Anti-static oil & heat resistant
Temperature range: -25°C to +100°C
| PROFILE |
HEIGHT mm |
RIB WIDTH mm |
ANGLE ° | MAX RIB |
| PH | 3.0 | 1.60 | 40 | 290 |
| PJ | 3.9 | 2.34 | 40 | 200 |
| PK | 4.8 | 3.56 | 40 | 130 |
| PL | 8.0 | 4.70 | 40 | 100 |
| PM | 12.7 | 9.40 | 40 | 50 |

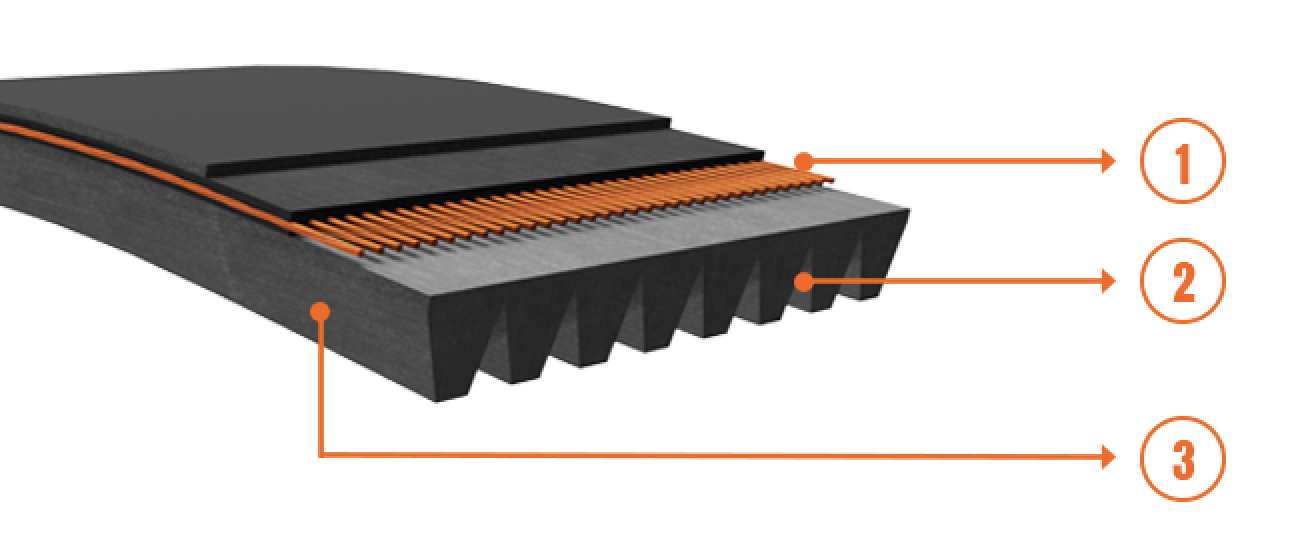

Constructional Details
1. Special design ribbed driving surface (Nylon)for maximum area of contact and reduced face pressure
2. High strength tensile member (Polyester)across the full width for maximum tensile strength and negligible elongation
3. Special rubber compound EPDM for high frictional grip to transmit uniform power even on smaller pulley diameter

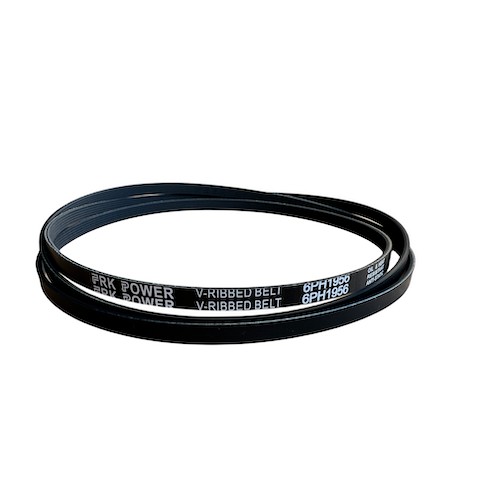

Elastic PJ PH are available, it is used for washing machine, drying machine and other home appliances.
